Wood copy shaper machine main features:
1.Fully automatic:Automatic feeding and out feeding:PLC control,automatic and manual operation all available
2.Reliable quality and good performance: All main parts are using famous brand products such as Siemens,Schneider,SKF etc.
3.Easy to operate: You can operate machine through touch screen controller.
4.High efficient: Can process 3-6 workpieces in one minute and one worker can operate 3-5 set machines.
5.Easy to maintain:Adopted high quality steel structure with rust proof paiting,and all electric parts are reliable brand.
6.Widely application: Suitable for processing many kinds of small woodware such as round cover,knife handle,brush handle,post caps,cup cover,pizza plate,spoon,wood handiworks,artware and other shape woodwares.
Technical Parameters:
| Number of Spindle | Single |
| Working Air Pressure | 0.6-0.8Mpa |
| Cutter Motor Power | 5.5kW |
| Rotary Motor Power | 0.4kW |
| Feeding Speed | 4-20r/min |
| Cutter Spindle Speed | 9000rpm |
| Spindle Diameter | 25.4mm |
| Shaping Length | 20-300mm |
| Shaping Width | 15-180mm |
| Shaping Height | 5-50mm |
| Dust outlet Diameter | 100mm |
| Max Rectangular Cutting | 2:1 |
| Dimensions | 1150*950*1600mm |
| NET Weight | 600KGS |
Samples:

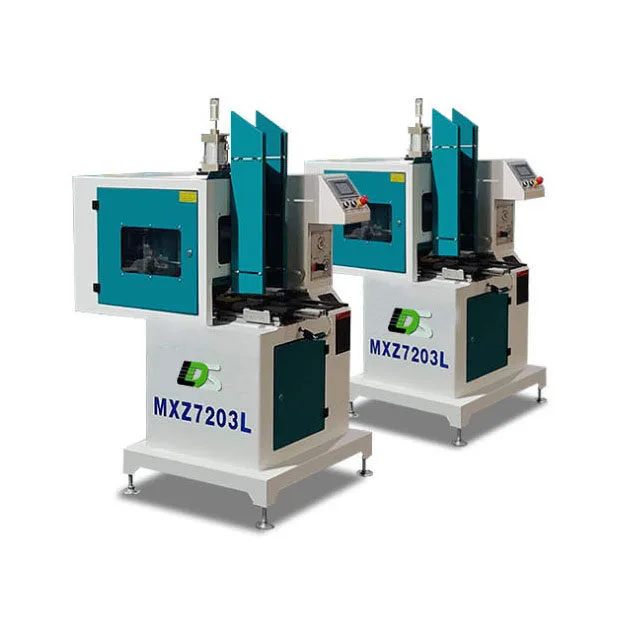

Machine Details：
Video Link on YouTube:
https://www.youtube.com/watch?v=OX9L9bGZ46g
